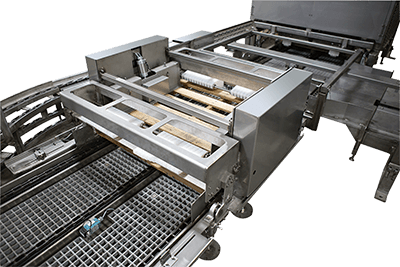

DAMAGED PALLET CHECKER

Reduce product loss and damaged packaging by detecting defective pallets before they cause problems.

This patented, automated inspection system identifies and rejects faulty pallets that may disrupt production lines or harm products. The modular design of the Pallet Checker integrates seamlessly into existing pallet handling operations, delivering a comprehensive solution for improving pallet quality control processes. Its keyboard edge sensing technology inspects every inch of the pallet without requiring overly complex technology, enabling high operational efficiency with compact simplicity.

Schedule a call View all products

Specifications

ApplicationsAutomated pallet handling applications

ConstructionHeavy duty, stainless steel formed welded design

Pallet Size40”x40”, 40”x48”, 40”x52” typical; 2- or 4-way wood pallets

FlowPower chain conveyors or rollers

SpeedUp to 4 pallets per minute

Power Requirements230/460 Volt, 3 Phase

Air0 P.S.I.

Hydraulic0 P.S.I.

SafetyFull guard package with safety interlocks and light curtain monitored open access points

ControllerAllen-Bradley PLC, Nema 4X stainless steel enclosure

DisplayAllen-Bradley Panelviews

StandardsUL 508A control panels.

Key Features

Patented design uses "keyboard" edge sensing to inspect every inch of the pallet, eliminating the need for overly complex technology.

Compact and simple design delivers high operational efficiency with immediate payback.

Configurable design allows for a standalone inspection solution or integration into your existing pallet flow material handling system.

Commonality of parts simplifies replacement part sourcing and ordering.

Complete line solutions available, including bad pallet auto-reject station, pallet unstacking, and restacking.

Stainless steel washdown or mild steel painted construction options available.

Integrations

Complete line solution for sorting both good and bad palletsPallet conveyors for smooth and efficient transportationPallet unstacking for separating pallets from stacksPallet restacking for organizing pallets into stacksDepalletizing for unloading products from pallets.
